Instalación Plug and Play

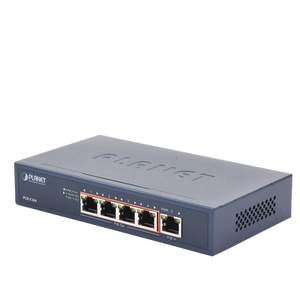

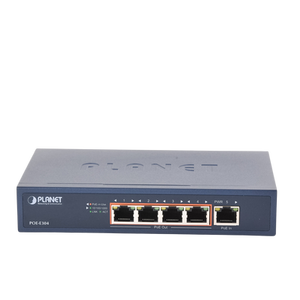

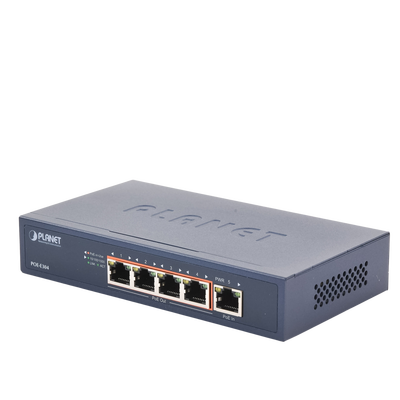

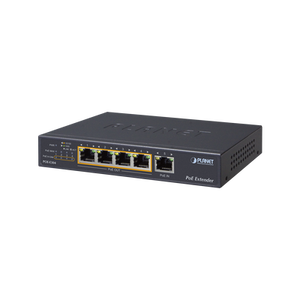

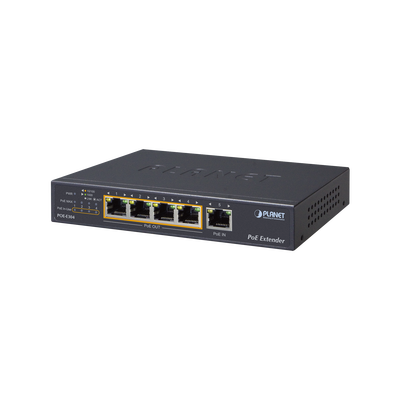

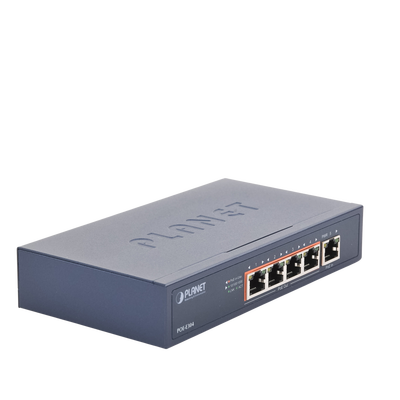

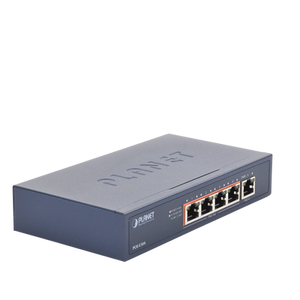

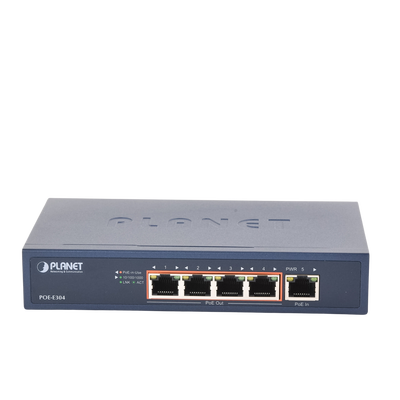

El POE-E304 Se utiliza entre el equipo de alimentación (PSE) y un dispositivo alimentado (PD) ofreciendo una solución rentable y rápida para duplicar el rango estándar de PoE de 100 a 200 metros.

Especificaciones Fisicas
Puertos de Red	PoE In Port 1 x 10/100/1000BASE-T Ethernet with Ultra PoE “Data + DC” in, auto MDI/MDI-X, auto-negotiation RJ45 connector PoE Out Port 4 x 10/100/1000BASE-T Ethernet with IEEE 802.3at/802.3af PoE “Data + DC” out, auto MDI/MDI-X, auto-negotiation RJ45 connector
Negociación	10/100/1000Mbps
Switch	Store-and-Forward
Tabla MAC Address	2K
Data Buffer	2Mbits
Switch Fabric	10Gbps
Switch Throughput	7.44Mpps @ 64 bytes
Jumbo Frame	9K
Flow Control	IEEE 802.3x pause frame for full duplex Back pressure for half duplex
LED Indicators	PoE In Port 10/100 LNK/ACT (Orange), 1000 LNK/ACT (Green) PoE Out Port 1 to Port 4 10/100 LNK/ACT (Orange), 1000 LNK/ACT (Green) PoE-in-Use (Orange) PoE Max. (Orange)
Protección	ESD (Ethernet): 6KV Surge (EFT for power): 2KV
Enclosure	Metal
Instalación	Desktop/Wall mountable
Dimenciones (W x D x H)	160 x 92.5 x 28 mm
Peso	370g
Requerimientos Energeticos	PoE In: IEEE 802.3bt or 4-pair 802.3at PoE+ compliant with voltage within 50V-56V DC External DC: 50~56V DC
Consumo Energetico	4 watts/13.7BTU (System on with PoE input) 6 watts/20.6BTU (Ethernet full loading without PoE function) 60 watts/205.9BTU (Full loading with PoE function)
Cableado	10BASE-T: 4-pair UTP Cat5 up to 100m (328ft) 100BASE-TX: 4-pair UTP Cat5 up to 100m (328ft) 1000BASE-T: 4-pair UTP Cat5e, 6, up to 100m (328ft) EIA/TIA-568 100-ohm STP (100m, 328ft)
Power over Ethernet
PoE	PoE In Port Ultra Power over Ethernet end-span/mid-span PD class 4 PD Per PoE Out Port IEEE 802.3at Power over Ethernet Plus end-span PSE IEEE 802.3af Power over Ethernet end-span PSE
Alimentación PoE	PoE In Port 50~56V DC, max. 60 watts Per PoE Out Port 44~55V DC, max. 30.8 watts
Configuración de Pines	PoE In Port 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) or 1/2(-), 3/6(+); 4/5(+), 7/8(-) Per PoE Out Port 1/2 (+), 3/6 (-), end-span (Type A)
Presupuesto de Alimentación PoE	50 watts (max.) @ Ultra PoE input 20 watts (max.) @ IEEE 802.3at PoE+ input
Standard Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Standard Compliance	IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3x Flow Control
Environment
Operación	Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
Almacenamiento	Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing)

Características Clave

Extiende el rango de PoE a 100 metros adicionales (328 pies)
Cumple con IEEE 802.3af / IEEE 802.3at PoE + / end-span PSE
Instalación plug-and-play para montaje en pared
Soporta temperatura de 0 ~ 50° C
Se puede alimentar con PoE 802.3bt 95 Watts
